Archive for the 'Uke 1001 – Bubinga Tenor' Category

Uke 1001 – Wrapped Up and Ready to Play

January 18, 2012

It’s a snow day, a day before my son’s 19th birthday, and the birth of my second uke.  The finish is KTM9, a water based lacquer which I believe I will continue to use for future instrument finishes.  I took several months to apply, knockdown and buff the finish, and I believe it improved the results.  Also, 24 or more very thin coats proved to be the right approach.  I avoided drips and orange peel effect, and the knockdown was more straightforward.

120118finished

There’s nothing like a fire, dog and uke to complete a snow day at home.

Uke 1001 – Home Stretch

January 15, 2012

Tomorrow this uke will be making music.  The finish is all knocked down and polished, and today I mounted the bridge.  After setting overnight it will be a quick transition to get the strings installed.

120115bridgemount

Uke Lacquer – Uke Cure – Myrtle Join

November 6, 2011

Devin dropped by today and we polished up his frets, nut, saddle, and installed a pickguard.  Looks like it’s really done.

I’ve been applying lacquer to the Bubinga Uke and the Koa Uke.  The Bubinga is fully lacquered and is sitting in cure mode for a couple of more weeks.

111106curing

The Koa uke has 16 coats, and I think 24 will be the cat’s pajamas.  I should be able to get the 24 applied by Tuesday evening.

111106coat16

Between lacquer applications (wait one hour please) I’ve been bracing the Myrtle Parlor (for Rachel) and I joined the back plates.

111106myrtlejoin

111106myrtlejoint

I’m liking this myrtle, and it seems like it will be nice to work on.  It planed easily while preparing the plate joint.

Uke Lacquer – Fretboard Markers – Lava Light

November 30, 2011

Let’s start with the Lava Light.

111030lavalight

After William left for UW, several items which I coveted were left behind.  Lava Light (or Lamp)!

I mapped out a schedule for the completion of Uke 1101, and it is possible to complete before I go to Salt Lake for Thanksgiving.  It will be a bit tricky to continue working on the uke while the lacquer is curing.  Today, I finished the 8th coat of lacquer, with an intention of putting on 20 coats.  Tomorrow I’ll add 4 more coats.  Coincidentally, I am adding coats to the Bubinga uke, and after tomorrow’s application, it will have 24 coats.

111030backlacquer

This is the back of the Bubinga.

111030toplacquered

111030headlacquer

Between coats I attached the fret markers to the Hybrid’s fretboard and the Thorn and Vine to 1202 (Bob).  The shell is glued to the surface with white glue.  I will score a border around the glued shell, then pop off the shell in preparation for routing a channel.

111030thornandvine

Uke 1101 – Resumed

October 24, 2011

Teaching has been wiping me out.  I have been immersed in such a way that my building opportunity was minimal.  I will be visiting Salt Lake for Thanksgiving, and I would like to have my sister’s uke finished by then.  It is completely possible as I am at the finishing stages.

The original uke has been sitting waiting for additional lacquer coats, so it’s part of the deal.

111024ukestosprtay

The koa is ready to accept the first coat (sanding sealer) and the bubinga is ready for coat number 15.

111024porefiller

The pore filler is a brown base so initially alters the color.  After it is applied a squeegee is used to scrape it off, hopefully leaving behind a smooth surface.  It will be scuffed down to remove any haze on the surface of the wood/purfling/binding.  It may require a second application if the pores are not fully filled.

The koa with its first coat of sanding sealer.  After scuffing the finish smooth, pore filler is applied.


Regroup – Laying Out What’s Next

August 22, 2011

The past year has gone by rapidly and I have engaged in many endeavors which little resembled guitar building.  I started and completed a program which garnered me a secondary teaching certificate.  I have accepted a job as a High School math teacher, and my first day with the students is September 7th.  All my concentration on becoming a math teacher has eaten into my time building guitars.  My 2011 output has been well below my previous years, yet I still continued to gain commissions for guitars and ukes and have created quite a backlog.

I realize that I need to analyze and prioritize my pending work and set out a semblance of a plan to organize.

Uke 1001 – Bubinga Tenor: This, my first uke, has been sitting with 12 coats of lacquer, waiting to accept more lacquer.  My original intention was to piggy back on the lacquer work for Uke 1101.  Once the lacquer has been applied and cured, I will be able to quickly finish with the following:  Install bridge, saddle, nut, end pin and tuning machines.  Level frets and do setup.

Uke 1101 – Koa Tenor: I have taken this uke on a grand tour, displaying it at a cousin reunion and guitar camp.  It needs minor filing of the binding, a bit more neck shaping, then aggressive final sanding before the sanding sealer, pore filling, and application of lacquer (together with Uke 1001).  This uke, for Cynthia, is priority number 1, and I intend to start back on Tuesday of this week.

New:  Uke 1201 – Koa Tenor 2: I have all components on hand to build another Koa Tenor Uke.  A man has to build himself a uke.  This lands as priority number 5.

Guitar 903 – Walnut OM: Devin’s guitar (my apprentice).  Devin took the summer off and only recently has returned to finish his guitar.  The bridge is mounted, and the remaining work includes saddle shaping, bridge shaping/notching/installing, fret leveling/polishing/truss rod tweaking culminating in stringing and setup.  He is days away from walking home with his finished guitar.

Guitar 1002 – Hybrid Cutaway: I have been ignoring the ukes by dabbling away with this Macaferri style nylon string cutaway for Jim.  I have been shaping the neck and heel and dreaming of bending the cutaway side for the past months.  Before I proceed I need to resolve the dimensions of the neck, and how the cutaway will join and transition into the neck heel.  The top and back are braced but still need further shaping/sanding before I’m ready to join the neck to the top for insertion into the new workboard.  This work is priority number 2.

New:  Guitar 1201 – Myrtle Parlor: I have a gorgeous piece of California Myrtle which will be the showcase for a new parlor for Rachel.  I already have an Engleman Spruce top which has been joined with rosette installed.  I have all components on hand and still need to decide appointments.  Priority number 3.

New:  Guitar 1202 – Indian Rosewood OM: This guitar has been commissioned by Susan as a gift for Bob.  Gonna get that name Bob into the fretboard inlay design somehow.  I always wanted to inlay the word Bob.  This, along with guitar 1203 are priority number 4.

New:  Guitar 1203 – Devil Parlor: I call this the Devil Parlor as it will have a double cutaway.  This is a commission for Emily and shares priority number 4 with Guitar 1202.  I’m using Peruvian Walnut and Engelman Spruce.  I’m considering a black lacquer back and sides and am going to attempt a sunburst top.  Ivroid binding.  Somebody tell me how I’m going to do that please.

I have numbered the new instruments with a 12 prefix, anticipating that these will be completed in 2012.

Still on hand, and available for future guitars:  Sitka Spruce, Bearclaw Sitka Spruce, Ziricote, Ovangkol, Master Grade Claro Walnut (2 sets).

What is it?

March 19, 2011

Rachel returned from China/India Tuesday and she brought me a present.

110319chinainstrument_0

She’s not sure what it’s called, so what’s it called?  I need to restring, and I’m not sure what the bridge orientation should be.

Today I added more lacquer coats to the koa dreadnought (6 of 12) and the uke (9 of 12).  The uke is a disaster.  It became dislodged from the spray booth bracket and fell to the cement causing a reasonable amount of damage, including pebbles throughout the wet lacquer coat, a chip out of the headstock, and a segment of binding with road rash.  Oh well, file it down, keep going.  Thank god this is just a “test uke”.  I’m sure it will sound lovely, but it will look like shit.

I’m also refinishing a headstock on an eBay purchased Fender koa uke.

110319fenderhead

I have some aerosol nitrocellulose that I am using to refinish this headstock.  It’s got 4 coats now, and I’ll probably go as far as 10.

I devised a little jig for drilling holes in my uke bridges.  I’m going to use bridge pins with strings secured inside the body with bone beads.  I’ll get a picture up later of the string beads.

110319bridgejig

Spray Day – 6 of 12 and a little 3

March 11, 2011

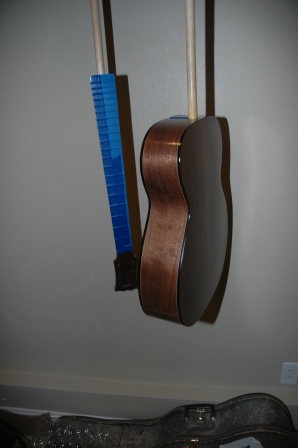

Spray day today.  Added 3 more coats to Guitar 903, and Uke 1001 bringing them to 6.  Striving for 12.

110311sixthcoat

110311sixthcoat

Applied the first three coats to the neck for Guitar 1001 while the pore filler dries on the box.

110311thirdcoat

Between coats, I spent a wee bit of time inserting a temporary piece in the truss rod channel for Guitar 1002.  This is to assist in finding the centerline for the neck as I work on the taper.

110311insert

Sanding Sealer

February 15, 2011

The spray odyssey begins.  One coat of sanding sealer (lacquer) before applying the pore filler.  The walnut OM color and grain is jumping out even with one coat.

110215topsealer

110215backsealed

The bubinga uke got the first spray treatment.  Some imperfections revealed themselves, but should be hidden once the 12th coat of lacquer gets applied.

110215ukesealed

The koa dreadnought is awaiting further sanding.  I am going to sand this guitar way too much vs. previous attempts to sand too little.

Flurry of Activity on the Horizon

February 13, 2011

The stage is set for the dreaded retreat to the spray booth.  Spraying lacquer is a process which is a whole lot of setup followed by very brief spraying sessions culminating in a necessary yet dreaded cleanup.  It behooves one to have several guitars ready for spraying at the same time.  I have delayed spraying the koa dreadnought to get the walnut OM and the bubinga tenor uke ready for spraying as well.  That’s three instruments staged for spraying at the same time.

I have traditionally used nitrocellulose lacquer, with excellent results but questionable effect on my respiratory system.  Even though I use a vented booth and a respirator mask, I have experienced deleterious effects from the nitrocellulose.  This round of spraying will employ a water based lacquer, KTM-9.  I have used KTM-9 in the past, and applied it with a brush, and the results were good, yet I anticipate the spray application to be excellent.

I have had mixed results with the pore filling steps, and this time am committed to ensuring the pore filling will be immaculate regardless of how many applications I need to fulfill a mirror surface on the back, sides and neck.

The proposed steps are:

1.  One coat of lacquer sanding sealer

2.  Several applications of pore filler, until smooth

3.  Sand until smooth without penetrating sanding sealer

4.  3 coats of lacquer applied every hour

5.  Cure 24 hours, scuff sand

6.  3 coats (that makes 6), cure 24 hours, scuff sand

7.  3 coats (that makes 9), cure 24 hours, scuff sand

8.  Determine need for 3 more coats or proceed to finish

9.  After 2 weeks of cure, progressive sanding, starting with 400 through 1200 wet sand

10.  Buff

These steps precede attaching the bridge, bolting on the neck and moving to final setup (fret dressing, nut and saddle shaping, install tuning machines).  Based on this schedule, I am about 3 weeks away from completion.

Spraying is a lot of hurrying to wait.  I can fill the gaps in time by continuing on construction of the hybrid Macaferri and the koa tenor uke.  Next week I will be receiving a cutaway ram to install on my side bending machine.  I have also devised a use for this ram on a side bending machine built purposely for uke sides.  Since my current machine is too large to properly bend uke sides, I am constructing a bending platform which will use the cutaway ram for the waist bend for uke sides.  Pictures coming later.
